Railway population

Eurostar 3213 and 3214 in Marseille-Saint-Charles in 2017 – CC-BY by Roel Hemkes

The following map from 2024 by Simon C. Scherrer (via @freakonometrics) indicates that one-third of the Swiss population lives in a five-kilometer-wide strip on either side of the Intercity 1 railway line.

A third of the Switzerland population lives along the Geneva–St. Gallen railway line – 2024-04-24 by Simon C. Scherrer – data: Kontur/data.sbb.ch/Natural Earth

What is the situation in France?

I didn’t easily find the statistics per line, but I guess a similar configuration —main line (whatever it means), main cities, many passengers, crossing the country— would be the discontinued Eurostar (London)–Calais–Lille–Marne-la-Vallée–Lyon–Marseille or the current TGV inOui Lille-Lyon-Marseille. However they don’t stop at Paris intra muros, so we miss a good part of the population.

Config

library(sf)
library(glue)
library(dplyr)
library(osmdata)
library(purrr)
library(httr2)
library(rnaturalearth)
library(stringr)
library(ggplot2)

sf_use_s2(FALSE)

Note

A 7z system binary is also required

Data

Railway

We can get the railway geometry from the OSM relation with {osmdata} and an Overpass API query.

osm <- r"([out:xml][timeout:6000];
relation(5951791);
(._;>;);
out body;)" |>
  osmdata_sf()

eurostar <- osm |>
  pluck("osm_multilines")

stations <- osm$osm_points |>
  filter(railway == "stop",
         uic_ref %in% c("8775100", "8772319", "8711184", "8722326"))

fr <- ne_countries(scale = "large") |>
  st_intersection(eurostar |>
                    st_bbox() |>
                    st_as_sfc() |>
                    st_buffer(4.5, joinStyle = "MITRE", mitreLimit = 10))

eurostar |>
  ggplot() +
  geom_sf(data = fr, color = "darkgrey") +
  geom_sf(color = "red", linewidth = 0.5, alpha = 0.8) +
  geom_sf(data = stations) +
  geom_sf_text(data = stations,
               aes(label = str_wrap(name, width = 15,
                                    whitespace_only = FALSE)),
               size = 3,
               hjust = 1.1) +
  labs(title = "London-Marseille",
       caption = glue("data: OpenStreetMap contributors
                      Natural Earth
                      https://r.iresmi.net - {Sys.Date()}")) +
  theme_void() +
  theme(plot.caption = element_text(size = 7, color = "grey40"),
        plot.background = element_rect(fill = "white"),
        plot.margin = unit(c(.2, .2, .2, .2), units = "cm"))

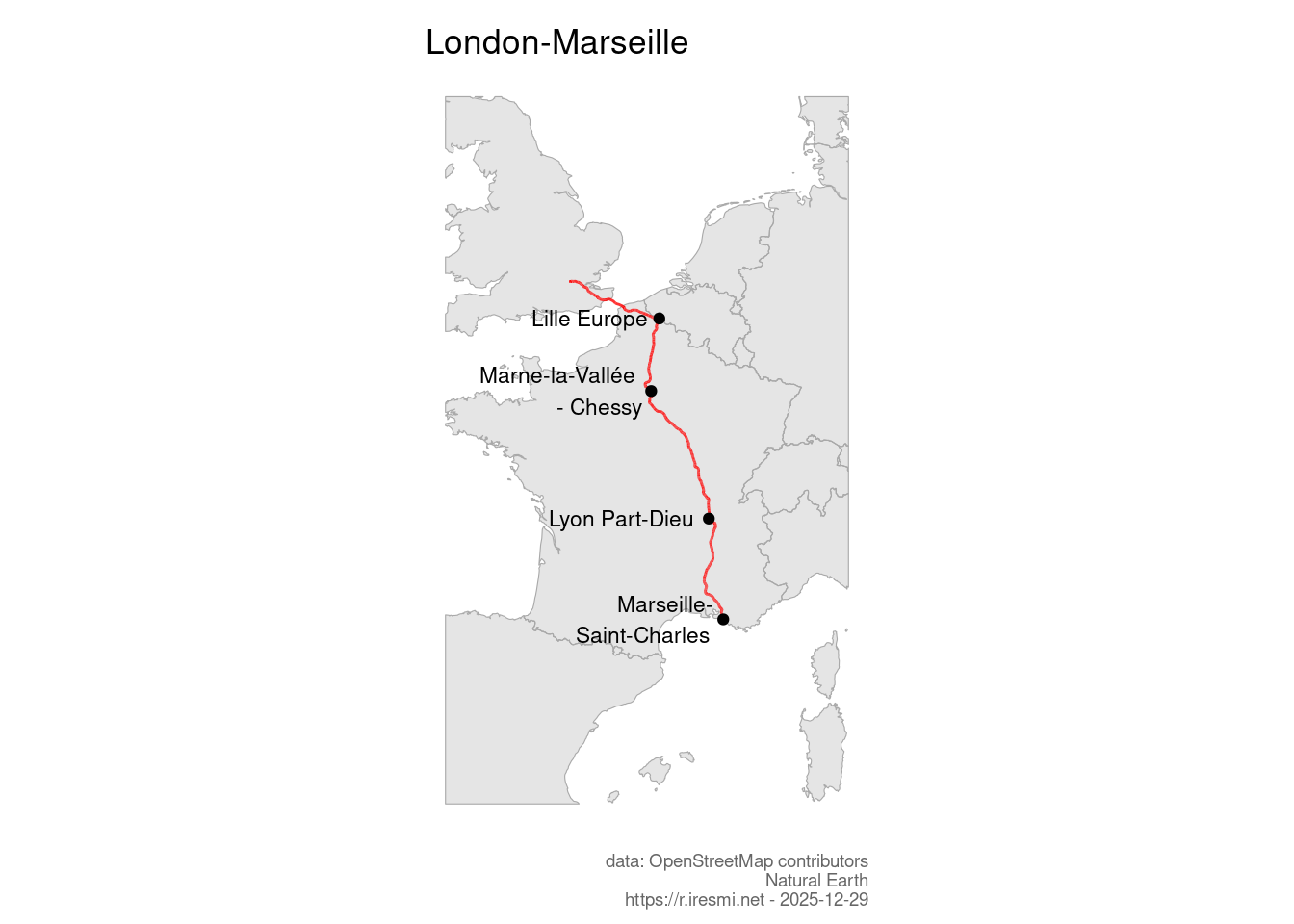

Figure 1: London-Marseille railway

Population

Population comes from INSEE 2015 200 m grid.

Caution

The 7z file is itself zipped!

if (!file.exists("carreaux_200m_met.gpkg")) {
  pop_file <- "Filosofi2019_carreaux_200m_gpkg.zip"
  if (!file.exists(pop_file)) {
    request(glue("https://www.insee.fr/fr/statistiques/fichier/7655475/\\
                 {pop_file}")) |>
      req_perform(pop_file)
  }
  unzip(pop_file)
  system("7z e Filosofi2019_carreaux_200m_gpkg.7z carreaux_200m_met.gpkg")
  system("rm Filosofi2019_carreaux_200m_gpkg.*")
}

pop <- read_sf("carreaux_200m_met.gpkg")

Results

Within 5 km

pop_5km <- pop |>
  st_filter(eurostar |>
              st_transform("EPSG:2154") |>
              st_buffer(5000)) |>
  st_drop_geometry() |>
  summarise(pop_tot = sum(ind, na.rm = TRUE)) |>
  pull(pop_tot)

pop_fr <- pop |>
  st_drop_geometry() |>
  summarise(pop_tot = sum(ind, na.rm = TRUE)) |>
  pull(pop_tot)

• Total population: 62,971,073
• Population within 5 km: 4,163,426

So only 6.6 % of the french (metropolitan) population is within 5 km of this railway line.

Within 50 km

If we extend to 50 km, we’ll capture most part of Paris…

pop_50km <- pop |>
  st_filter(eurostar |>
              st_transform("EPSG:2154") |>
              st_buffer(50000)) |>
  st_drop_geometry() |>
  summarise(pop_tot = sum(ind, na.rm = TRUE)) |>
  pull(pop_tot)

• Population within 50 km: 25,696,130

So 40.8 % of the french (metropolitan) population is within 50 km of this railway line. Not bad, but the question could be now: does the train stop at a station near you? This is left as an exercise to the reader (spoiler: less and less…).

eurostar |>
  ggplot() +
  geom_sf(data = fr, color = "darkgrey") +
  geom_sf(color = "red", linewidth = 0.5, alpha = 0.8) +
  geom_sf(data = eurostar |>
            st_transform("EPSG:2154") |>
            st_buffer(50000),
          fill = "red", alpha = 0.2) +
  geom_sf(data = stations) +
  geom_sf_text(data = stations,
               aes(label = str_wrap(name, width = 15,
                                    whitespace_only = FALSE)),
               size = 3,
               hjust = 1.1) +
  labs(title = "London-Marseille",
       caption = glue("data: OpenStreetMap contributors
                      Natural Earth
                      https://r.iresmi.net - {Sys.Date()}")) +
  theme_void() +
  theme(plot.caption = element_text(size = 7, color = "grey40"),
        plot.background = element_rect(fill = "white"),
        plot.margin = unit(c(.2, .2, .2, .2), units = "cm"))

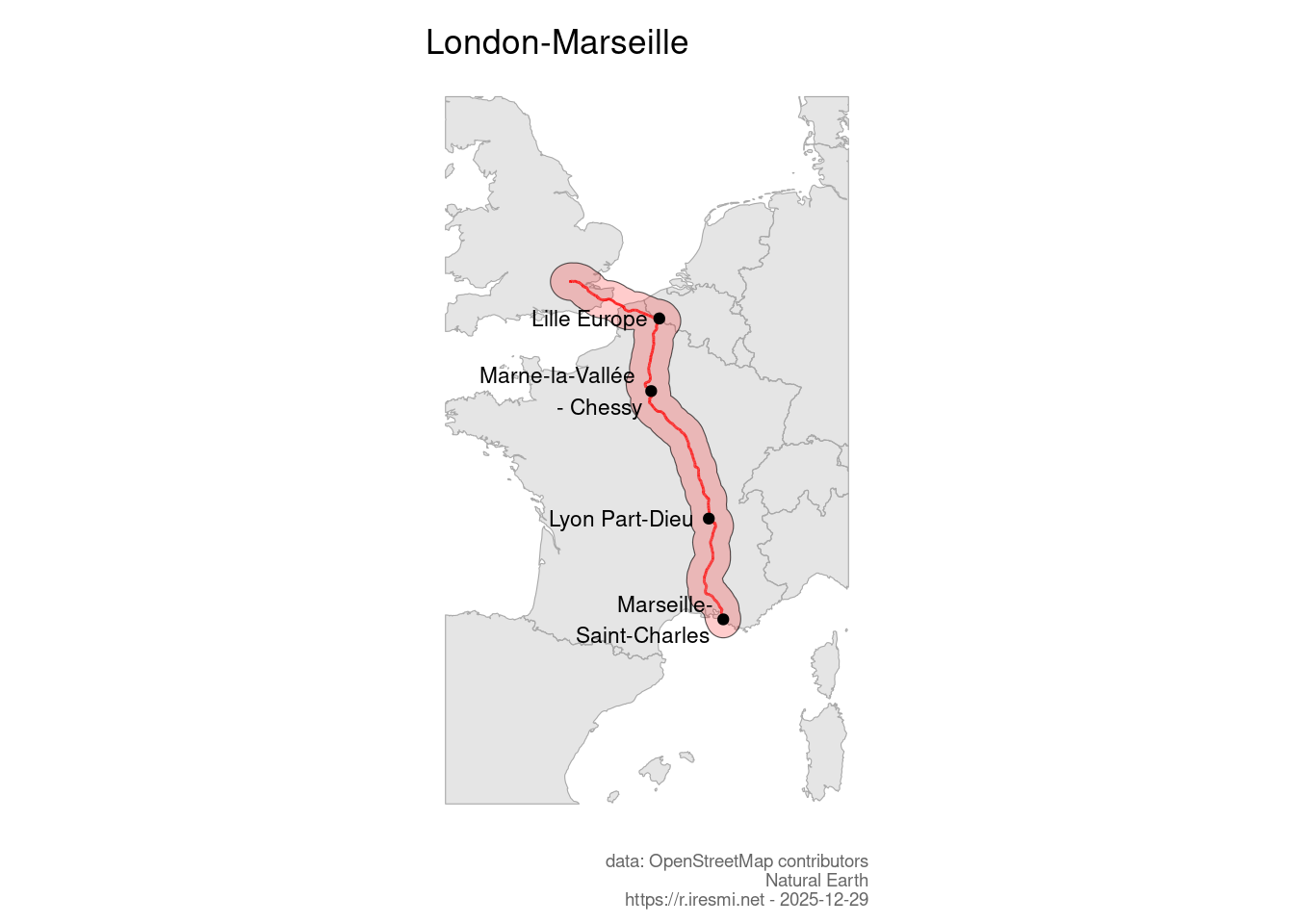

Figure 2: London-Marseille railway in France and a 50 km buffer
